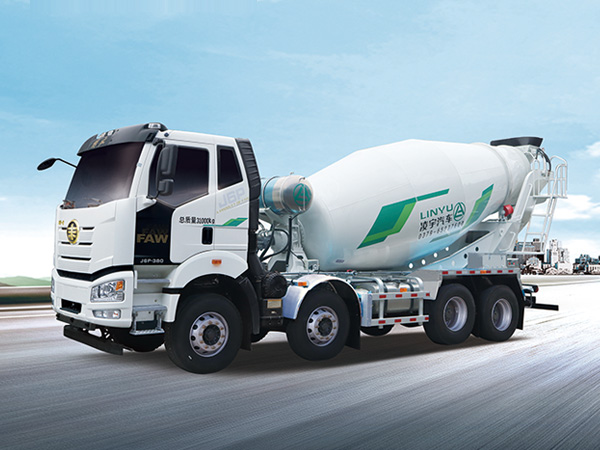

Linyu series concrete mixer truck adopts European modern style, featuring attractive appearance, rational structure and stable performance.Different steel materials for different parts of tank body, which is made from famous steel factories. Service life is 1.5 times than average.

Adopt CNC plasma equipment and leading international fixtures, ensure the accuracy of the parts manufacturing key weld using CNC automatic welding production lines to ensure the weld strength. Modular design and assembly lineperation keeps product quality consistency. Structure parts adopt blasting pretreatment process; Painting work use luxury coach paint process ,completely in accordance with the coating process of industry leading technology ,effectively guarantee the quality of the vehicle.

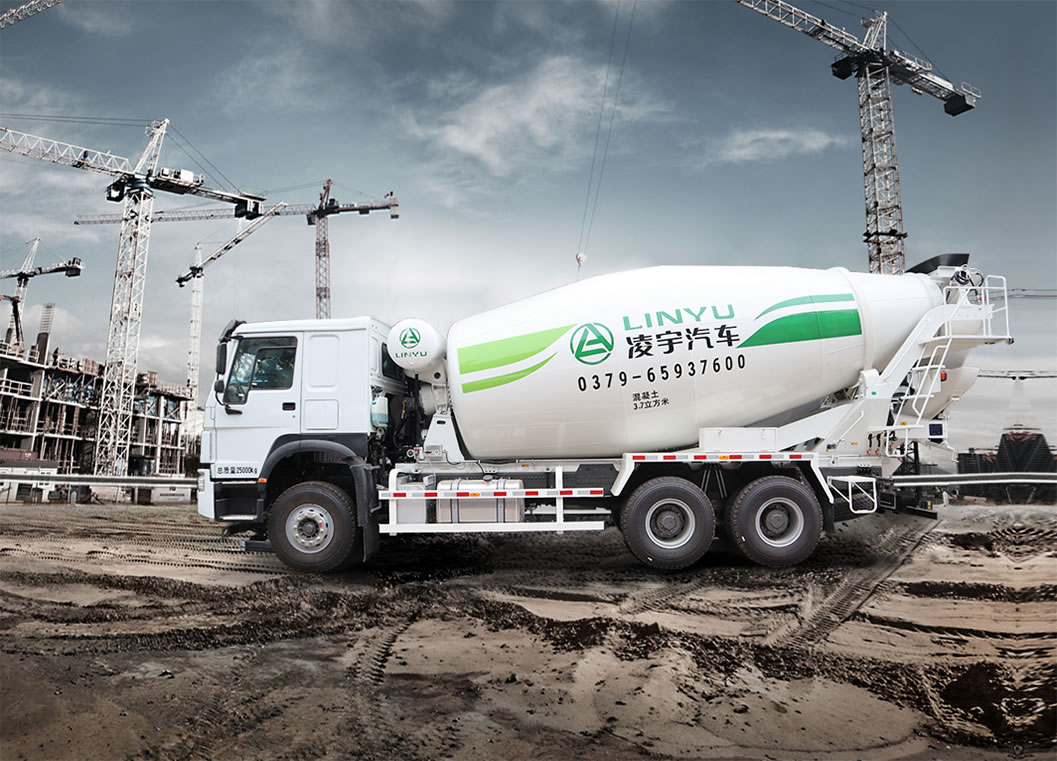

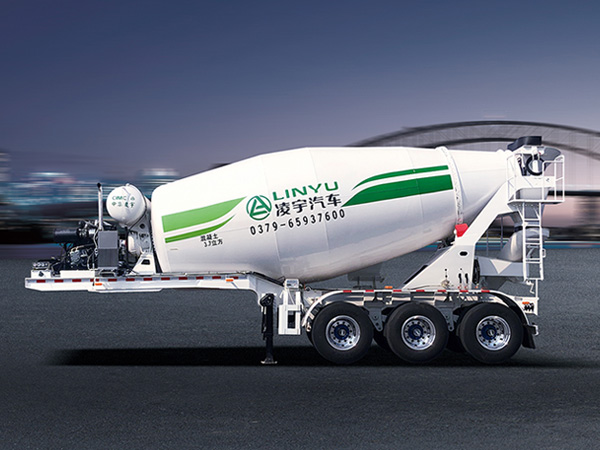

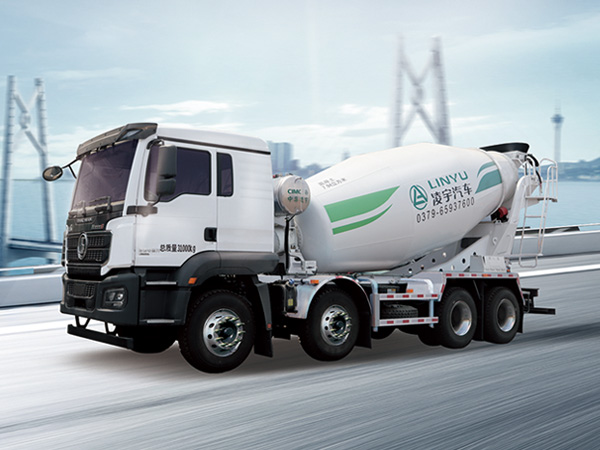

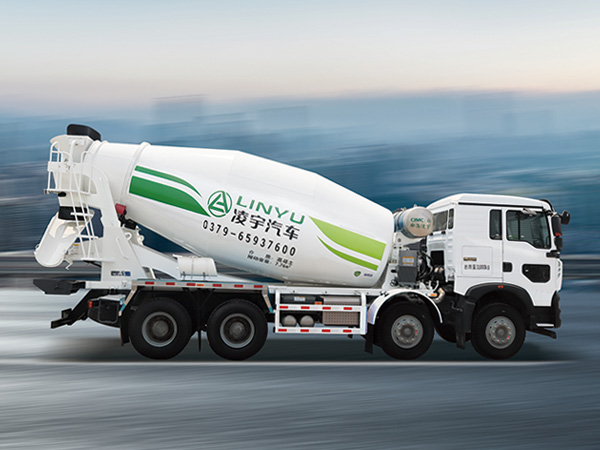

Linyu series concrete mixer truck covers mixing capacity 3-20 m3 all volume products, mainly adopts DONGFENG, SINOTRUK, SHACMAN, AUMAN, FAW,C&C TRUCK, JAC, HONGYAN, BEI BEN, DAYUN, HINO, MITSUBISHI, ISUZUchassis. Special upper tank projects for special chassis, to make each othermatch reasonable.

Mixer Truck Fearures

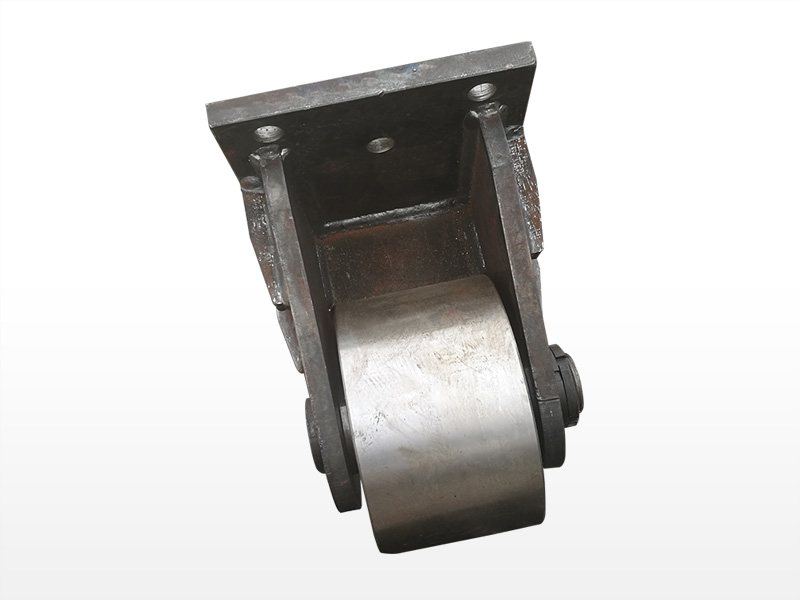

Product Structure Introduction
1

Control System

Adopt three point control mode, that is,by control bar on both rear sides and in-cab deviceto control the drum easily and conve-niently.

2

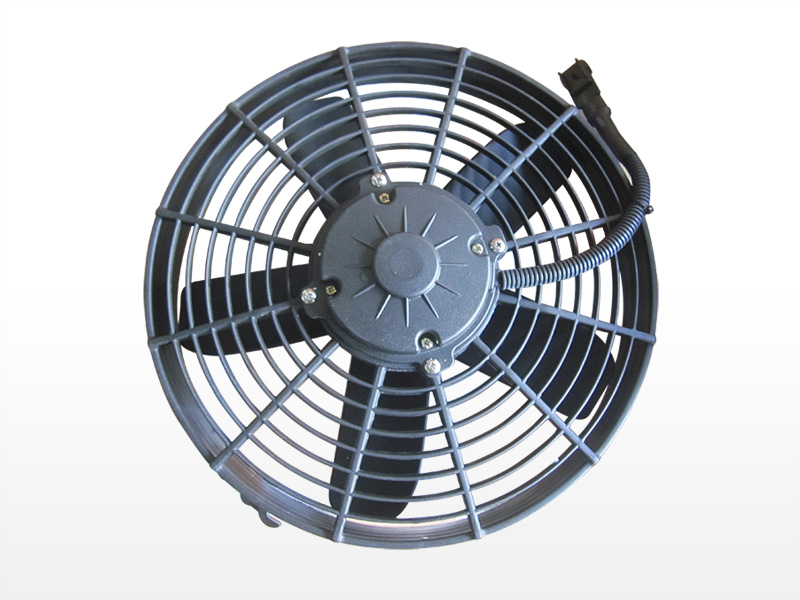

Hydraulic Driving System

Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure, excelent performance, meeting customers’various special need.

3

Water Supply System

Have various volume water tanker ,can feed the water for mixing and cleaning, enlarged water pipe and various feeding solution. can convenient customer, water feeding solution can use air pressure, reducer pump, electronic pump ect, can meet different requirement.

4

Blade Anti-wear Protection

Modified logarithmic helical curve type of blade.In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle service life, but also synchronizing the wear of drum and blades.

5

Blade Process

Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.

6

Humanization Design

Lighting device: human- oriented large power tail working lamp at rear part, not only meeting special requirement for night working, but also ensuring safety of personnel and vehicle.

Step area: adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.

Self-lockingn cab, to prevent from mistake operation and ensure security.

Smart equipment: remote operation, water metering,tank mouth seal etc.

1、Control System

Adopt three point control mode, that is,by control bar on both rear sides and in-cab deviceto control the drum easily and conve-niently.

WORKING PRINCIPLE
Concrete mixer mixing principle
Concrete mixer mixing principle

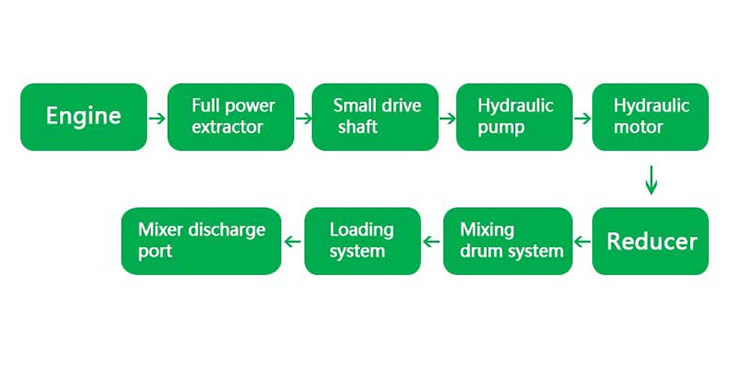

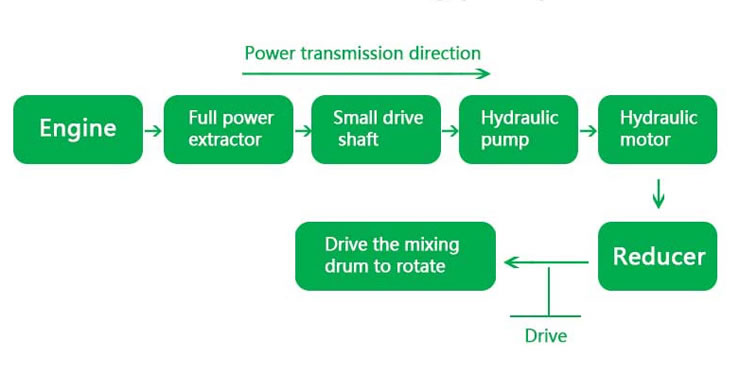

The power take-off drives the power of the engine through the small drive shaft to drive the hydraulic motor of the hydraulic pump to rotate, and drives the mixing drum to rotate through the reducer. On the way to transport concrete, it is necessary to keep the stirring tank rotating at a low speed of 1-3 revolutions per minute to ensure the homogeneity of the concrete and prevent the segregation of concrete,which is called agitation (commonly known as stirring).

Concrete mixer loading principle
Concrete mixer loading principle

When the concrete mixer truck is installed, the stirring tank rotates at a speed of 6-10 rpm. The concrete enters the mixing drum from the nozzle through the charging system and flows to the middle and lower part of the mixing drum under the guidance of the spiral blade. Note: The direction of rotation of the tank should be consistent during loading and during transportation, otherwise the concrete will be discharged during transportation.

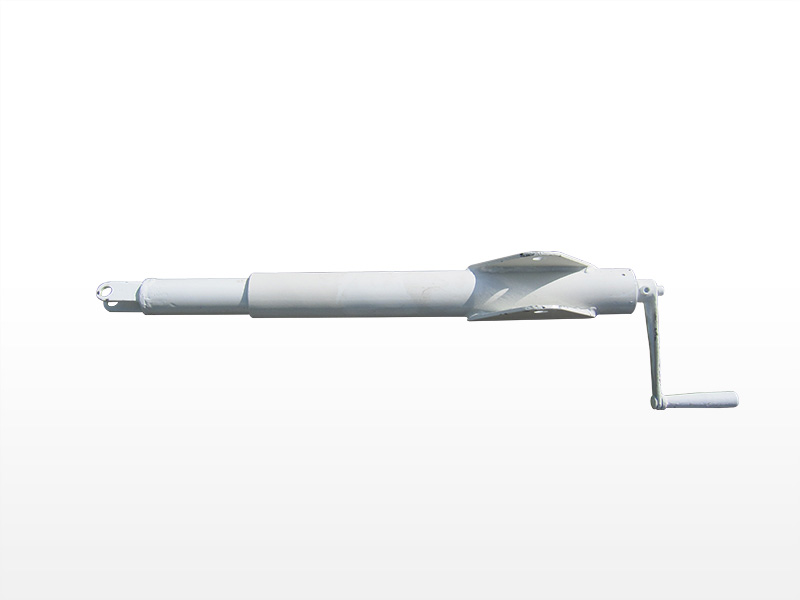

Concrete mixer truck unloading principle
Concrete mixer truck unloading principle

When the concrete mixer truck is unloading, the engine transmits the power to the concrete mixer truck through the power take-off, hydraulic pump, reducer, etc., and drives the tank to rotate at a speed of 3-14 rpm. The concrete is pushed by the spiral motion of the blade. Move in the direction of the nozzle and discharge through the unloading hopper of the mixer. At this time, the direction of rotation of the can body is opposite to the direction of feeding.

Concrete mixer mixing principle
Concrete mixer cleaning principle

The water tank is pressurized by the air reservoir of the brake system, and the water flows through a pressurized cleaning tank system, a charging port, a discharge system, and the like.
