What are the functions of the fuel tank truck clutch?

According to people's usual driving habits, when driving a tank truck vehicle, as the clutch pedal is raised, the accelerator pedal must be properly depressed, so as to ensure a smooth start without "trembling". Use the method of starting at idle speed. Just for experimental purposes. So what are the functions of the clutch of the tanker truck?

1.Ensure smooth start of fuel tank truck

This is the primary function of the tanker clutch. Before the car starts, it is natural to start the engine. When the car starts, the car gradually accelerates from a completely stationary state. If the drive train (which links the entire car) is rigidly connected to the engine, the car will suddenly move forward as soon as the transmission is in gear, but it will not start. This is because the car has a large inertia from stationary to forward, causing a great resistance to the engine. Under this moment of inertia resistance, the engine's speed drops sharply below the minimum stable speed (generally 300-500 RPM) in an instant, and the engine will stop working and the car will not start.

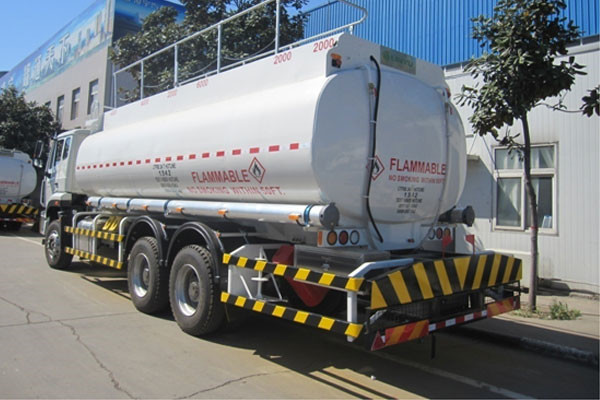

fuel tank truck

Therefore, we need the help of the clutch. After the engine starts and before the car starts, the driver first depresses the clutch pedal, disengages the clutch, disengages the engine from the drive train, puts the transmission in gear, and then gradually releases the clutch pedal to gradually engage the clutch. During the engagement process, the engine's blocked torque gradually increases, so you should gradually press the accelerator pedal at the same time, that is, gradually increase the fuel supply to the engine, so that the engine speed is always maintained at the minimum stable speed without stopping. At the same time, as the clutch's engagement tightness gradually increases, the torque transmitted by the engine to the driving wheels via the drive train gradually increases. When the traction is sufficient to overcome the starting resistance, the car starts to move from standstill and gradually accelerates.

2. Smooth shifting of fuel tank truck

In the process of driving a car, in order to adapt to changing driving conditions, the drive train often needs to change to different gears. To realize gear shifting of a gear type transmission, generally, a gear or other gear-shifting mechanism is shifted to push out a certain gear pair of the original gear position for transmission, and then bring the gear pair of the other gear position into operation. Before changing gears, you must depress the clutch pedal to interrupt the power transmission, so that the meshing pair of the original gear can be disengaged. At the same time, the speed of the meshing position of the meshing pair of the new gear can be gradually synchronized, so that the impact when entering the mesh can be greatly Reduced to achieve smooth shifting.

3. Prevent overload of fuel tank truck drive train

When the car is in emergency braking, if there is no clutch, the engine will reduce the speed sharply due to the rigid connection with the drive train, so all moving parts in it will generate a large inertial force (its value may greatly exceed that of the engine during normal operation). Maximum torque), causing the drive train to exceed its load carrying capacity and cause damage to the machine. With a clutch, this danger can be eliminated by relying on the relative movement that can occur between the driving and driven parts of the clutch. Therefore, we need a clutch to limit the maximum torque experienced by the drive train and ensure safety.

Fuel tank truck clutches can be divided into: friction clutches, or using fluid as the transmission medium (ie hydraulic coupling), or using force transmission (ie electromagnetic clutch).
